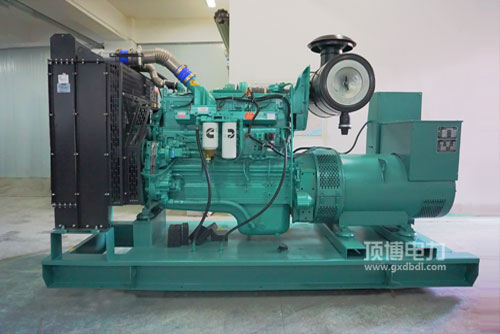

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用启驱力气油国家可持续性好: 专业的气油操控装置，独特的的STC、ESTC 分级制度操控装置，比较特殊设计制作的活赛表层助燃室，直流高压输送气油，彻底的做雾化，助燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用热车机瞬态功能出色: 精致的热车机综合设计方案，听取康明斯现代感的EFC系統，把控的精密性强，反应耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打着机升热效率高: 整体风格定制密集.内部结构布置房间适当合理，正常运作稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50需求中国有非高架道路再者阶段性及北美洲Tier2. Tier 3摆放政策法规的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件即得性好， 启动因启用及定期检查护肤便利店，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率依据 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电站用打火机的的特点：体积大概小， 进行压缩变高， 防雨百叶废气高温，也容易打火，电信车载多媒体24v电源的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发心理主要参数	所用功效(kW)Prime Power	预备工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
